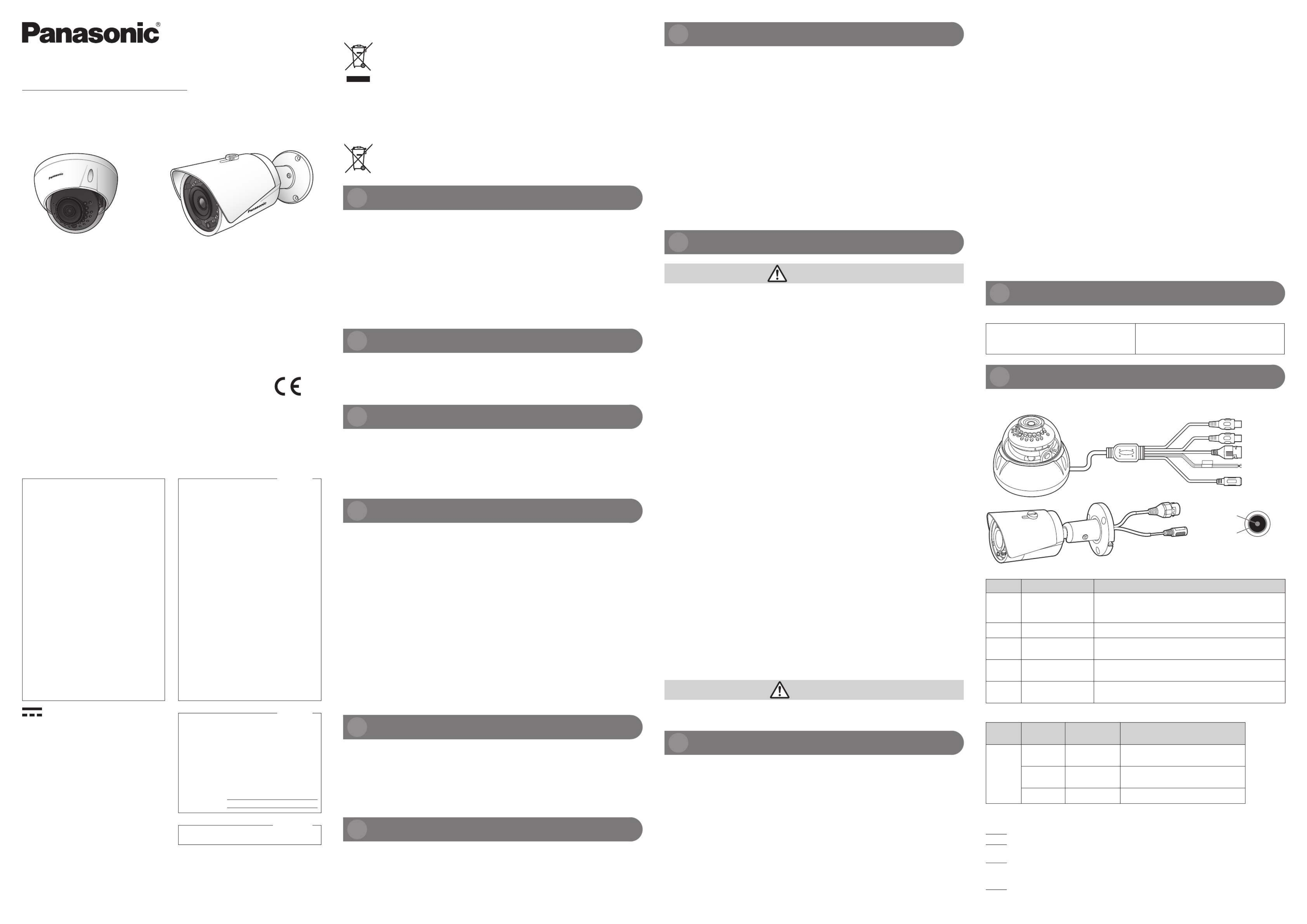

Installation Guide
Network Camera
Model No. WV-V2530LK/WV-V1330LK
FDu1016-0 PGQX2118ZA
Printed in China
WV-V2530LK
(Dome type)
WV-V1330LK
(Bullet type)
© Panasonic System Networks Co., Ltd. 2016
z For information about how to perform the settings and how to operate the camera, refer to the operation manual on the provided CD-ROM. zBefore attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
z
Microsoft, Windows, Windows Media, Internet Explorer, and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
z
Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
z
All other trademarks identified herein are the property of their respective owners.
Network security
As you will use this unit connected to a network, your attention is called to the following security risks.
1 Leakage or theft of information through this unit
2 Use of this unit for illegal operations by persons with malicious intent
3 Interference with or stoppage of this unit by persons with malicious intent
It is your responsibility to take precautions such as those described below to protect yourself
against the above network security risks.
zUse this unit in a network secured by a firewall, etc.
zIf this unit is connected to a network that includes PCs, make sure that the system is not
infected by computer viruses or other malicious entities (using a regularly updated anti-virus
program, anti-spyware program, etc.).
zTo prevent unauthorized access, use user-authentication, set user names and passwords, and
limit which users can log in.
zApply measures such as user authentication to protect your network against leakage or theft of
information, including image data, authentication information (user names and passwords), alarm
E-mail information, FTP server information and DDNS server information.
zAfter the unit is accessed by the administrator, make sure to close the browser.
zChange the administrator password periodically. Additionally, save user authentication
information (user names and passwords) in such a way that it is kept out of the hands of third
parties.
zDo not install the camera in locations where the camera or the cables can be destroyed or
damaged by persons with malicious intent.
Precautions
WARNING
•Refer installation work to the dealer.
Installation work requires technique and experiences. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
• Be sure to consult the dealer.
•Turn the power off when do wiring of this product.
Failure to observe this may cause electric shock. In addition, short circuit or wrong wiring may cause fire.
•Correctly perform all wiring.
Short circuits in the wiring or incorrect wiring may cause fire or electrical shock.
•Stop the operation immediately when something is wrong with this product.
When smoke goes up from the product, the smell of smoke comes from the product, or the
exterior of the product has deteriorated, continued use will cause a fire or fall of the product
resulting in injury, or damage to the product.
• In this case, turn the power off immediately and contact qualified service personnel for service.
•Select an installation area that can support the total weight.
Selecting an inappropriate installation surface may cause this product to fall down or topple over,
resulting in injury or accidents.
• Installation work shall be started after sufficient reinforcement.
•Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a fall of the product resulting in injury or accidents.
• Consult the dealer for the inspections.
•Do not install this product in locations subject to vibration.
Loosening of mounting screws or bolts may cause a fall of the product resulting in injury or accidents.
•Install this product in a location high enough to avoid people and objects from
bumping the product.
Failure to observe this may cause injury.
•Do not attempt to disassemble or modify this product.
Failure to observe this may cause fire or electric shock. Consult the dealer for the repair or inspections.
•The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
•Do not insert any foreign objects.
Fire or electrical shock may be caused if water or any foreign objects, such as metal objects, enter
inside the unit. Turn the power off immediately and contact qualified service personnel for service.
•Do not use this product in an inflammable atmosphere.
Failure to observe this may cause an explosion resulting in injury.
•Avoid installing this product in the locations where salt damage occurs or
corrosive gas is produced.
Otherwise, the mounting portions will deteriorate and accidents such as a fall of the product may occur.
•Do not strike or give a strong shock to this product.
Failure to observe this may cause fire or injury.
•Do not install or clean the camera, or touch this product, the power cable or the
connected cables during thunder storms.
Failure to observe this may cause electric shock.
•Keep SDXC/SDHC/SD memory cards away from infants and children.
Otherwise, they may swallow the cards by mistake. In this case, consult a doctor immediately.
CAUTION
•Turn the power off when cleaning this product.
Failure to observe this may cause injury.
Precautions for use
This product has no power switch.
When turning off the power, disconnect the power supply from the12 V DC power supply or the PoE device.
To keep on using with stable performance
Do not use this camera in hot and humid conditions for a long time. Failure to observe this causes
component degradation resulting in life shortening of this product.
Do not expose this camera to direct heat sources such as a heater.
Do not touch the lens with your bare hands.
A dirty lens causes deterioration of picture quality.
Handle this camera with care.
Do not drop this camera, nor apply shock or vibration to this camera. Failure to observe this may
cause trouble. If a strong shock or vibration is applied to the enclosure, it may cause damage or
allow water to enter this product.
About the battery
A battery is installed inside the camera. Do not leave the battery exposed in environments of
excessive heat as a result of sunlight or fire.
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries must not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol)
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
7) Only use attachments/accessories specified by the manufacturer.
8) Unplug this apparatus during lightning storms or when unused for long periods of time.
9) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Main functions
●2 Megapixel Full-HD fixed lens network camera
●H.265, H.264 and MJPEG triple-stream encoding
H.265 outputs and H.264 output can be provided.
●Wide-angle lens with day/night functionality and built-in IR-LED
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY’S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL,
CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR
NEGLIGENT OPERATION OF THE USER;
(3) ALL MALFUNCTIONS OR TROUBLES FROM UNAUTHORIZED DISASSEMBLE, REPAIR OR
MODIFICATION OF THE PRODUCT BY THE USER, REGARDLESS OF THE CAUSE OF THE
MALFUNCTION OR TROUBLE;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING OUT
OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES BROUGHT BY ANY PERSON OR ORGANIZATION
AS A PHOTOGRAPHED SUBJECT DUE TO VIOLATION OF PRIVACY CONCERNING A
SURVEILLANCE CAMERA’S PICTURE OR SAVED DATA, FOR SOME REASON (INCLUDING
USE WHEN USER AUTHENTICATION ON THE AUTHENTICATION SETTING SCREEN IS SET
TO OFF), BECOMING PUBLIC OR BEING USED FOR ANY PURPOSE;
(7) LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE (INCLUDING INITIALIZATION OF
THE PRODUCT DUE TO FORGOTTEN AUTHENTICATION INFORMATION SUCH AS A USER
NAME AND PASSWORD).
Open Source Software
zThis product contains open source software licensed under GPL (GNU General Public License),
LGPL (GNU Lesser General Public License), etc.
zCustomers can duplicate, distribute and modify the source code of the software under license of
GPL and/or LGPL.
zRefer to the “readme.txt” file on the provided CD-ROM for further information about open source
software licenses and the source code.
zPlease note that Panasonic shall not respond to any inquiries regarding the contents of the
source code.
Copyright
Except for open source software licensed under GPL/LGPL and so on, distributing, copying,
disassembling, reverse compiling and reverse engineering of the software provided with this
product are all expressly prohibited. In addition, exporting any software provided with this product
violating export laws is prohibited.
Product disposal/transfer
Data saved on this product or a storage device used with this product may lead to personal
information leakage. When it is necessary to dispose or give this product to someone, even when
for repair, make sure that there is no data on this product. When abandoning the memory media, it
is recommended to destroy it physically after deleting data by PC.
Cleaning this product body
Be sure to turn off the power before cleaning. Failure to observe this may cause injury. Do not use benzine,
thinner, alcohol, or any other types of solvents or detergents. Otherwise, it may cause discoloration. When
using a chemical cloth for cleaning, read the caution provided with the chemical cloth product.
About the MOS image sensor
zWhen continuously shooting a bright light source such as a spotlight, the color filter of the MOS
image sensor may have deteriorated and it may cause discoloration. Even when changing the
fixed shooting direction after continuously shooting a spotlight for a certain period, the
discoloration may remain.
zWhen shooting fast-moving subjects or performing panning/tilting operations, objects crossing
the shooting area may look to be bending askew.
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE
REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC
VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
Equipment classification and power source indication label
Refer to the indication label on the bottom side of this unit for the equipment classification, power
source, and other information.
Standard accessories
Confirm the following items are included in the camera’s packaging.
Installation Guide (this document) 1 pc. ..........
Warranty card 1 set ........................................
RJ45 waterproof connector 1 bag. .................
Template (Dome type only) 1 pc. .....................
Hexagonal wrench 1 pc. .................................
CD-ROM 1 pc. ...............................................
Connection
Device external cable
12V DC
GND
Power input port
1
5
4
3
2
1
3
Port Port Name Note
Port 1Power input port Power port. Input 12V DC.
When a PoE power supply is used to power the camera, the
power input port is not used.
Port 2I/O port Alarm signal input/output
Port 3LAN (Network port) RJ45 waterproof jack. Connect to standard Ethernet cable.
NOTE: Some devices do not support PoE power supply.
Port 4Audio input port
(White)
Input audio signal, receive analog audio signal from sound
pick-up.etc
Port 5Audio output port
(Yellow)
Output audio signal to speakers.etc
* Port 1245: Apply appropriate waterproofing.
Port
Name Color Port name Function Description
I/O Port Yellow ALARM_IN1 Alarm input port, receive on-off signal
of external alarm source.
Orange ALARM_OUT1 Alarm output port, output alarm signal
to alarm device.
Gray ALARM_GND Connect ground
Alarm input, output description:
Step 1 Connect alarm input device to the alarm input of I/O cable.
Step 2 Connect alarm output device to the alarm output of I/O cable, alarm output is collector
open circuit output which connects 10K resistor to 3.3V externally.
Step 3 Open the Web, set alarm input and output correspondingly. Alarm input on WEB
corresponds to I/O cable on device. When there is alarm, alarm input device will generate
signal of high and low level. Set corresponding NO and NC inputs.
Step 4 Set the WEB alarm output. The alarm output is for the alarm output port of the device. It is
the alarm output port of the I/O cable.
z For information about how to perform the settings and how to operate the camera,
refer to the operation manual on the provided CD-ROM.
zBefore attempting to connect or operate this product, please read these instructions
carefully and save this manual for future use.
Panasonic Corporation
http://www.panasonic.com
Panasonic System Networks Co., Ltd.
Fukuoka, Japan
Authorised Representative in EU:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
For Europe and other countries:For U.S. and Canada:
Panasonic System Communications
Company of North America,
Unit of Panasonic Corporation
of North America
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Two Riverfront Plaza, Newark, NJ 07102-5490
