4-579-617- (1)12
Before operating the unit, please read this manual thoroughly and retain it for
future reference.
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
THIS APPARATUS MUST BE EARTHED.
WARNING
This unit has no power switch.
When installing the unit, incorporate a readily accessible disconnect device in
the fixed wiring, or connect the power plug to an easily accessible socket-outlet
near the unit. If a fault should occur during operation of the unit, operate the
disconnect device to switch the power supply off, or disconnect the power plug.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is supplied power from an outlet
on the rack, please make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is supplied power from an
outlet on the rack, please confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make sure that the internal air
ambient temperature of the rack is within the specified limit of this product.
4. Prevention against achieving hazardous condition due to uneven
mechanical loading
When this product is installed in a rack, please make sure that the rack does
not achieve hazardous condition due to uneven mechanical loading.
5. Install the equipment while taking the operating temperature of the
equipment into consideration
For the operating temperature of the equipment, refer to the specifications of
the Operation Manual.
6. When performing the installation, keep the following space away from
walls in order to obtain proper exhaust and radiation of heat.
Right, Left : 4 cm (1.6 inches) or more
Rear : 10 cm (4 inches) or more
When installing the installation space must be secured in consideration of the
ventilation and service operation.
Do not block the ventilation slots at the left side and right side panels, and
ˎ
vents of the fans.
Leave a space around the unit for ventilation.
ˎ
Leave more than 40 cm of space in the rear of the unit to secure the operation
ˎ
area.
When the unit is installed on the desk or the like, leave at least 4 cm of space
in the left and right sides. Leaving 40 cm or more of space above the unit is
recommended for service operation.
WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.
If used in USA, use the UL LISTED power cord specified below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SJT, three 16 or 18 AWG wires
Length Minimum 1.5 m (4 ft 11 in), Less than 4.5 m (14 ft 9 in)
Rating Minimum 10A, 125V
Using this unit at a voltage other than 120 V may require the use of a different
line cord or attachment plug, or both. To reduce the risk of fire or electric shock,
refer servicing to qualified service personnel.
WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.
1. Use the approved Power Cord (3-core mains lead) / Appliance Connector /
Plug with earthing-contacts that conforms to the safety regulations of each
country if applicable.
2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug
conforming to the proper ratings (Voltage, Ampere).
If you have questions on the use of the above Power Cord / Appliance
Connector / Plug, please consult a qualified service personnel.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
All interface cables used to connect peripherals must be shielded in order to
comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC
Rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For the customers in Canada
CAN ICES-3 (A)/NMB-3(A)
For the customers in Europe
This product is intended for use in the following Electromagnetic Environment:
E4 (controlled EMC environment, ex. TV studio).
This apparatus shall not be used in the residential area.
For the customers in Europe, Australia and New Zealand
WARNING
This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
CAUTION
For safety, do not connect the connector for peripheral device wiring that might
have excessive voltage to the following port.
- NETWORK connector
Follow the instructions in this document and the installation manual for the
above port.
CAUTION
When you connect the NETWORK connector of the unit to peripheral device,
use a shielded-type cable to prevent malfunction due to radiation or static noise.
For kundene i Norge
Dette utstyret kan kobles til et IT-strømfordelingssystem.
For the customers in Taiwan only
For the customers in the U.S.A.
SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/
warranty for important information and complete terms and conditions of
Sony’s limited warranty applicable to this product.
For the customers in Canada
SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/pro/
lang/en/ca/article/resources-warranty-product-registration for important
information and complete terms and conditions of Sony’s limited warranty
applicable to this product.
For the customers in Europe
Sony Professional Solutions Europe - Standard Warranty and Exceptions on
Standard Warranty.
Please visit http://www.pro.sony.eu/warranty for important information and
complete terms and conditions.
For the customers in Korea
SONY LIMITED WARRANTY - Please visit http://bpeng.sony.co.kr/handler/
BPAS-Start for important information and complete terms and conditions of
Sony’s limited warranty applicable to this product.
Overview
This product is a bridge device for transferring SDI input/output signals on a 4K
live production system via a network. Up to 18 optional boards that are 3 rack
units in size can be mounted in the unit.

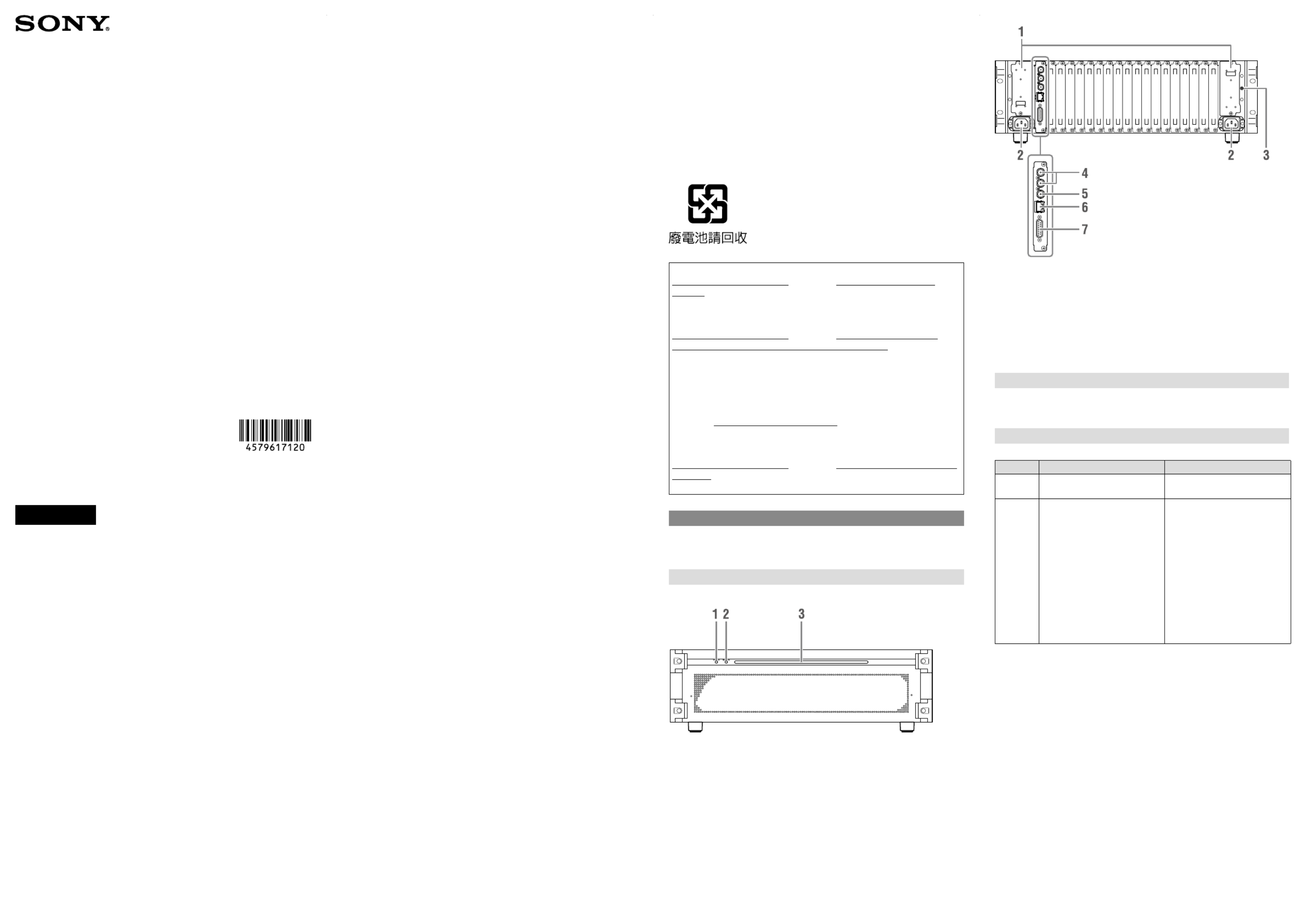

Parts Identification
Front
1 STATUS indicator
For details, see the “Status Indicator” section.
2 BEACON indicator
This is blinks blue in sync with the beacon lamp of any optional board that is
installed on the unit.
3 Front panel LED
This lights blue when the unit is turned on (depending on settings).
Rear
1 Fan unit (A, B)
2 Power connectors (A, B)
3 Ground connector
4 REFERENCE IN connectors
5 AUX IN connector (for future expansion)
6 NETWORK connector
7 STATUS OUT connector
Outputs errors occurring on the unit or the optional boards installed on the
unit.
Installation
To use this unit, settings must be configured according to the installation
manual. For details on acquiring the installation manual, contact your local Sony
service representative.
Status Indicator
The following states of the unit are indicated by the state of the status indicator.
Indicator Status Solution
Lit green Indicates that the unit is
operating normally.
—
Blinking
orange
Indicates a warning that has
no immediate affect on normal
operation.
Example:
The replacement cycle of the
ˎ
power supply fan or on-board
fan has been reached.
The date and time
ˎ
information has been reset.
A mismatch in video input
ˎ
signal formats or a signal error
has been detected by the
optional board.
Check the cables connected to
the unit and the status of the
signals.
If the status indicator does not
light green despite a lack of
problems with the cables and
signals, contact your local Sony
service representative.
SIGNAL PROCESSING
UNIT
Operation Manual
© 2015 Sony Corporation Printed in Japan
NXL-FR318
